Infoscan Camera

  • Handling capacity 400 parcels/hour, error-free
  • Automatically transfers barcode and DWS data to any WMS or ERP system
  • Free integration of our Infoscan with your WMS or ERP system
400 000 rub.
Order Now
Иконка руки — Инфоскан
SCROLL DOWN

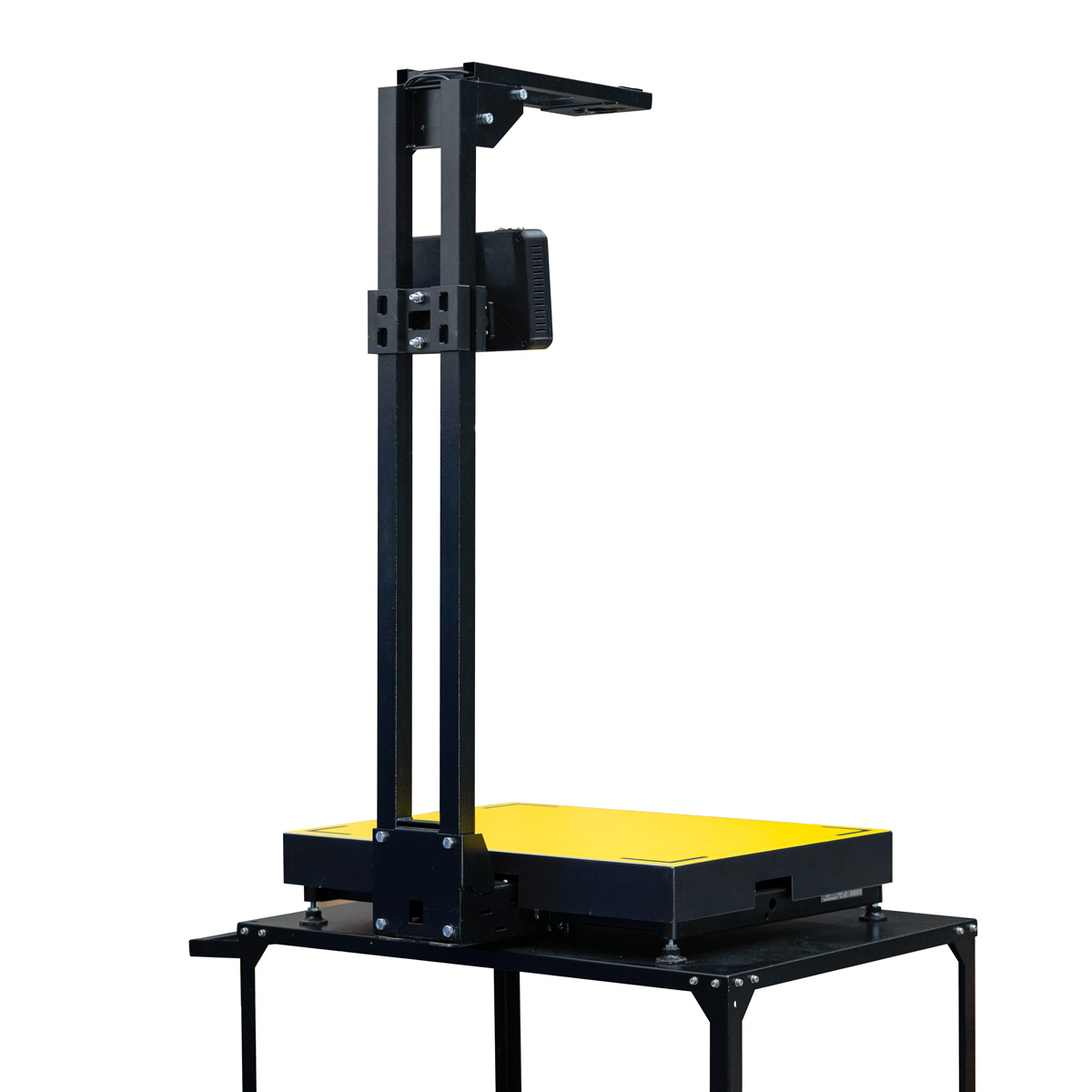

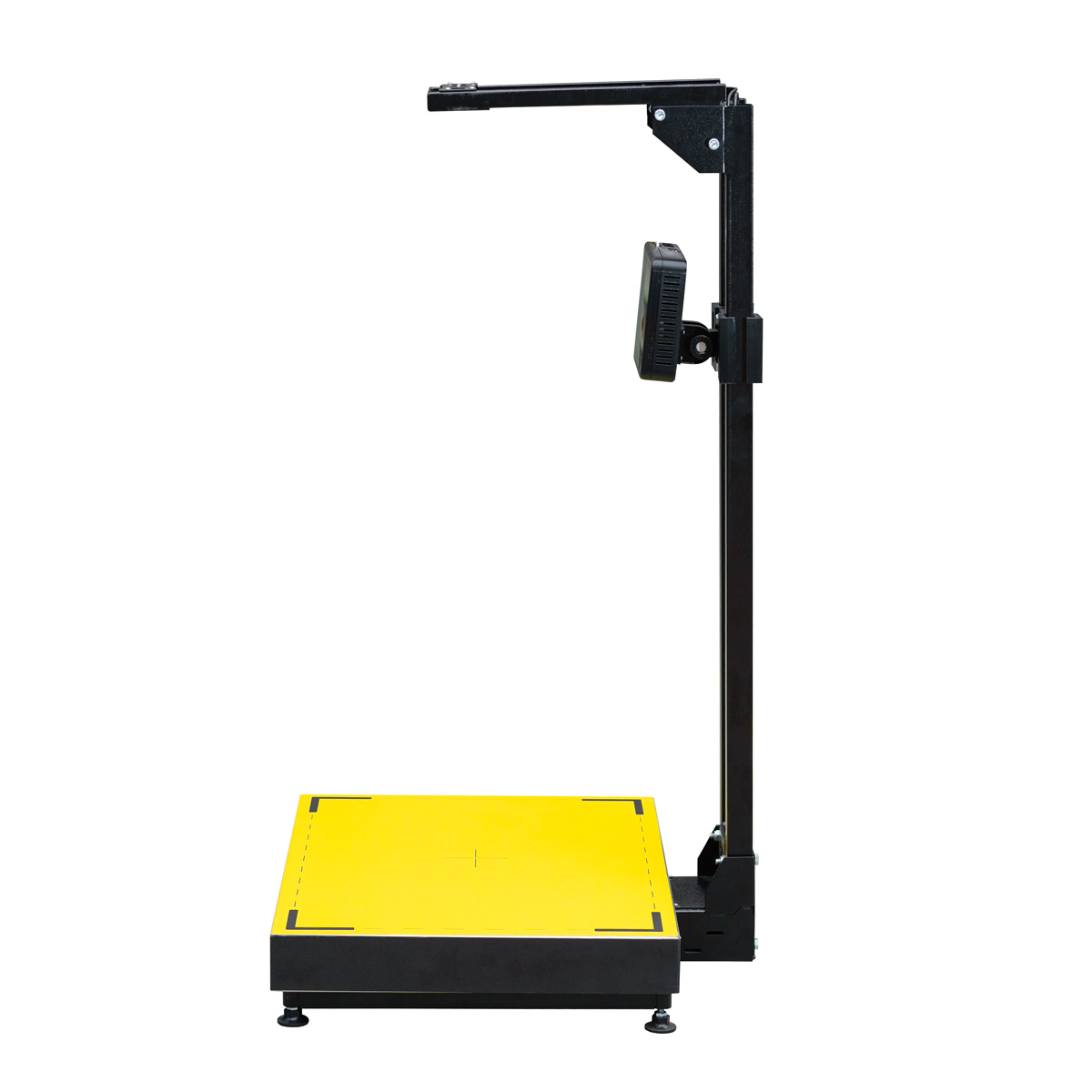

Infoscan Camera

Инфоскан Camera — Инфоскан Инфоскан Camera — Инфоскан Инфоскан Camera — Инфоскан Инфоскан Camera — Инфоскан Инфоскан Camera — Инфоскан Инфоскан Camera — Инфоскан
Инфоскан Camera — Инфоскан Инфоскан Camera — Инфоскан Инфоскан Camera — Инфоскан Инфоскан Camera — Инфоскан Инфоскан Camera — Инфоскан Инфоскан Camera — Инфоскан

Infoscan Camera

Static Dimensioning System
Measurement accuracy certified by metrological
certificate № 83617-21
    Measures cubic and irregular shapes in 1 second, error-free. Laser sensors. Maximum dimensions: up to 85 cm. Maximum weight: up to 50 kg. Warranty: 1 year.
  • Measures cubic and irregular shapes in 1 second, error-free
  • Laser sensors
  • Maximum dimensions: up to 85 cm
  • Maximum weight: up to 50 kg
  • Warranty: 1 year
  • How to measure irregularly shaped objects?

Optional Upgrades and Customization

400 000 rub. No VAT Order Now

Specifications

Ethernet port available
Wi-Fi (IPv6, 5GHz) available depending on the configuration
Dimensions (LxWxH) 800x750x1400 mm
Infoscan weight 40 kg

Measurement Range

Ethernet port available
Measurement sensor 3D Camera
Number of sensors 3
Dimensions (LxWxH) 20 to 900 mm
Dimensioning accuracy ±10mm
Maximum object weight Up to 50 kg
Weight measurement accuracy ±20 g
Weighing module ТВ-S-32.2 / ТВ-S-60.2
Measurement speed 1-2 seconds per measurement
Data input USB
Power supply 12V / 220V
Operating temperature 5°C to 40°C

Custom Infoscan Production

We can manufacture an Infoscan tailored to your specifications.
We’re open to discussing any custom requests for changes in design and
functionality, including color, size, and construction.

Discuss a Custom Order

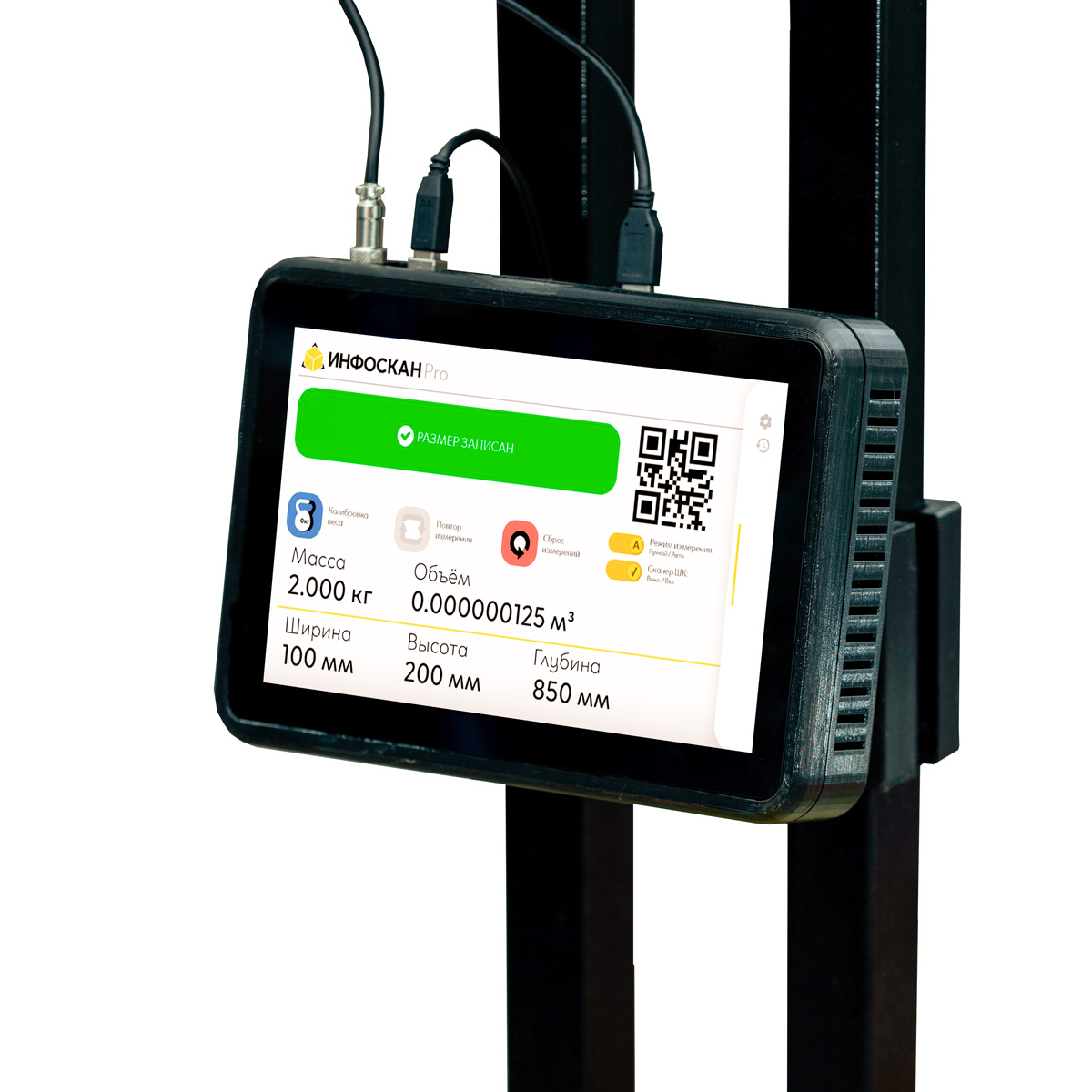

Device Display

  • 7-inch touchscreen Intuitive
  • user-friendly interface
Монитор Инфоскана

Weighing Scale

  • The weight data of the cargo is determined using a reliable weighing module from the leading Russian manufacturer of electronic scales. MASSA-K.
  • Measurement range: Up to 50 kg
Весовая платформа Инфоскана

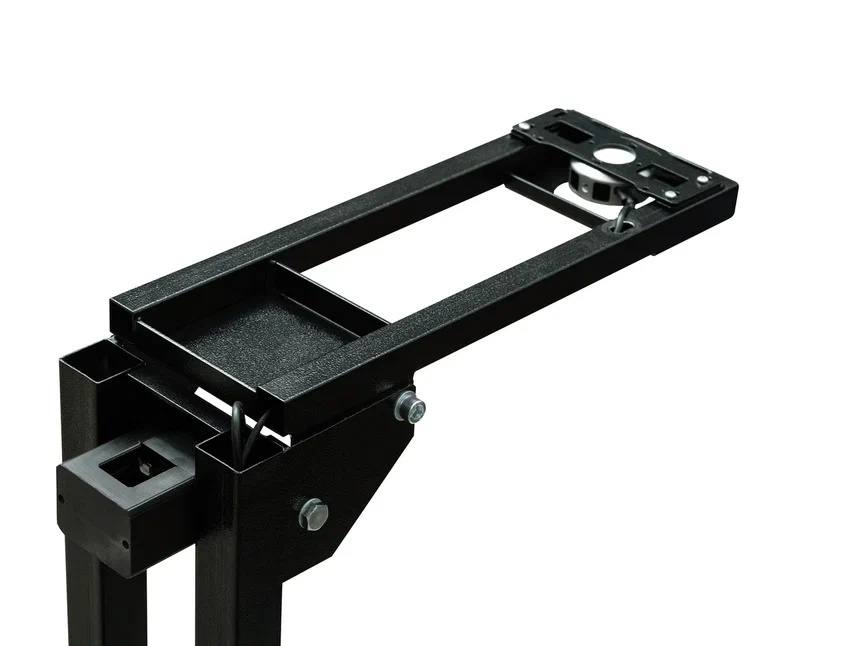

Camera

  • Infoscan Camera measures dimensions using a 3D camera.

Frame

  • The device body is made of high quality steel, covered with wear-resistant powder coating.
  • Steel: 2 mm.
  • Wear-resistant coating
Корпус Инфоскана

Additional equipment

Mobile Table

  • Is it inconvenient to carry items to the Infoscan? We've designed a mobile table to solve this problem. With this table, you can effortlessly move the Infoscan around your workspace.
  • Load capacity: Up to 150 kg
  • Rubber locking casters
  • Wheel locking mechanism
Иконка воспроизведения | <br /> <b>Notice</b>: Undefined variable: config in <b>/home/inf-tec/web/infoscansize.com/public_html/assets/includes/template/html/parts/table.php</b> on line <b>19</b><br />
See the Mobile Table in Action 3:55
Мобильный стол для Инфоскана

External Power Supply

  • The uninterruptible power supply unit mounted on the mobile table provides up to eight hours of continuous operation for the Infoscan Camera in standalone mode.
  • Battery life: Up to 8 hours of continuous use
  • Battery capacity: 7000 mAh
  • Charging: Powered via a 220V outlet
Мобильный стол для Инфоскана

How the Infoscan Camera measures objects
regular and irregular shape

Video presentation of Infoscan Camera
Measuring objects of different shapes using the Infoscan Camera
